Specifying valves for complex steam and oil services requires careful engineering. System designers must weigh precise flow throttling against severe operational risks. These inherent risks include sudden thermal shock, dangerous fugitive emissions, and rapid corrosive wear. Refineries and power plants cannot afford unexpected component failures. Carbon steel serves as a reliable baseline material for standard industrial piping networks. However, strict fluid purity demands, aggressive media, and extreme environments push standard metals beyond acceptable limits. Failing to upgrade materials under harsh conditions causes premature equipment failure. Poor material choices lead directly to massive safety hazards. We will explore how to determine if a stainless steel globe valve fits your specific high-stress fluid requirements. You will learn how to navigate material choices for pure steam, aggressive condensate, and corrosive crude oil. Ultimately, this guide provides practical steps to match valve configurations to your unique system demands. You can protect your infrastructure by understanding these critical metallurgical differences.
Steam Services: Stainless steel excels in "clean steam" environments (food, pharma) and aggressive condensate lines where carbon steel degrades rapidly.
Oil & Petrochemical: High resistance to sulfur compounds (sour crude) and organic acids makes stainless steel critical for specific upstream and downstream oil processes.
Fugitive Emissions: Zero-leakage requirements in hazardous oil or thermal fluid systems often necessitate upgrading to a bellows seal design.
Operators frequently experience severe operational failures when they use incorrect valve types. For example, using gate valves for flow control creates immense fluid turbulence. This turbulence leads directly to wire drawing and permanent seat damage. Gate valves simply cannot handle continuous throttling duties safely. Their internal discs chatter violently under high fluid velocities. This mechanical chatter destroys the sealing surfaces within weeks. You must match the valve geometry to the specific process task.
You need a specific set of success criteria for high-demand fluid services. A globe valve proves ideal because it provides precise flow regulation. It ensures repeatable, tight shut-off capabilities during critical isolation phases. Furthermore, it easily handles substantial pressure drops across the valve body. Its internal Z-shaped design forces fluid to change direction twice. This directional change creates natural resistance and controls fluid momentum effectively.
When evaluating materials, engineers typically compare cast iron and carbon steel against stainless steel. Standard carbon steel works perfectly well for benign, low-pressure water systems. However, extreme industrial applications require upgraded metallurgy. Common grades like 304 and 316 stainless steel offer vastly superior performance. You select stainless specifically to combat aggressive oxidation and chemical attack. It maintains structural integrity during extreme temperature variations. Standard materials degrade quickly under these intense operating conditions. Replacing standard metals prevents sudden leaks and costly facility shutdowns. Adding molybdenum to 316 stainless steel enhances its pitting resistance specifically. This elemental addition makes it highly desirable for harsh chloride environments.
Different steam environments demand distinct material solutions to guarantee safety. The food, beverage, and pharmaceutical industries require ultra-pure steam systems. In these sectors, you must use stainless steel strictly to prevent product contamination. It actively stops rouge formation inside your hygienic piping networks. Iron oxide rouge compromises batch sterility and violates strict FDA regulations. Selecting high-grade stainless alloys eliminates this costly contamination risk entirely.
Aggressive condensate return lines present another major industrial challenge. As steam cools, it often forms highly corrosive carbonic acid. Traditional carbon steel fails rapidly when exposed continuously to acidic condensate. The acid aggressively eats away the internal pipe walls. Upgrading your materials eliminates this rapid internal corrosion completely. Plant managers frequently notice immediate reductions in condensate line maintenance.
You must evaluate specific engineering features to achieve desired performance outcomes. High-velocity steam and flashing easily erode standard metal seating surfaces. Flashing occurs when hot condensate suddenly changes into vapor. This phase change unleashes destructive energy against the valve internals. Therefore, you should assess the necessity of hardened trim components. Applying Stellite facing on the plug and seat prevents severe erosion. This hardening process extends internal component life significantly. It ensures tight shut-off even after years of continuous steam throttling.
Implementing these robust materials does introduce certain mechanical risks. Stainless steel components are highly susceptible to thread galling. Galling occurs frequently under conditions involving high thermal cycling. The metal surfaces literally fuse together under intense friction and heat. Proper lubrication techniques mitigate this frustrating mechanical bonding. Technicians should apply specialized anti-seize compounds during initial assembly. Alternatively, choosing dissimilar metal pairing for stems and nuts prevents galling effectively.
Upstream oil extraction often involves pumping highly corrosive crude. You can easily justify utilizing 316 stainless steel when processing sour crude. Sour crude contains aggressive hydrogen sulfide (H2S) concentrations. You must ensure your equipment complies fully with NACE MR0175 standards. This compliance prevents deadly sulfide stress cracking in pressure boundaries. Without proper metallurgical controls, H2S causes sudden, catastrophic brittle failures. Engineers must verify material hardness limits to guarantee NACE compliance.
Thermal oil systems handle diathermic fluids at extreme operating temperatures. These fluids transfer heat safely across large manufacturing plants. You must evaluate material stability carefully for these heating applications. Carbon steel frequently suffers from heavy scaling or long-term structural degradation. Extreme heat accelerates oxidation on standard steel surfaces. Stainless alloys resist this dangerous thermal scaling effectively. They maintain their smooth internal finishes, preventing localized fluid coking.
Downstream processing facilities handle highly refined petrochemicals daily. These operations process organic acids and aggressive industrial solvents. Stainless alloys resist these volatile chemicals seamlessly. They do not leach unwanted metal ions into the refined product streams. This chemical inertness protects your highly valuable end products.
Engineers must always address stringent security and compliance mandates. API standards like API 623 and API 602 dictate strict design parameters. API 602 covers compact forged valves, while API 623 covers larger cast designs. Fire-safe design requirements remain absolutely critical for all hydrocarbon applications. They ensure plant safety during catastrophic external fires. Fire-safe designs feature secondary metal-to-metal seating areas.
We must maintain a balanced perspective regarding material specification. Non-corrosive, standard-temperature lubricating oils rarely require advanced metallurgy. A standard carbon steel valve usually provides sufficient performance for basic oils. Specifying stainless steel here represents an unnecessary over-expenditure. You should reserve premium alloys for truly demanding process environments.
Material Suitability Chart for Liquid Hydrocarbon Operations
Oil Service Type | Primary Operational Challenge | Recommended Base Material | Engineering Justification |
|---|---|---|---|
Sour Crude Extraction | High H2S content causing cracking | 316 Stainless Steel | Resists dangerous sulfide stress cracking completely |
High-Temp Thermal Fluids | Extreme temperature scaling and coking | 304/316 Stainless Steel | Maintains molecular stability under thermal stress |
Refined Petrochemicals | Organic acid corrosion | 316 Stainless Steel | Provides superior resistance to harsh industrial solvents |
Basic Lubricating Oil | Low pressure, ambient temperatures | Standard Carbon Steel | Delivers reliable performance for non-corrosive media |
Standard PTFE or graphite stem packing sometimes proves completely insufficient. You will encounter this limitation in hazardous, toxic, or highly flammable thermal oils. High-pressure steam applications also push standard packing beyond safe operational limits. You need a more secure containment strategy for dangerous media. Packing glands naturally wear down from constant stem friction. They require periodic retightening by maintenance personnel to stay secure.
Evaluating a bellows seal mechanism reveals stark differences compared to traditional packing. Traditional stem packing inherently risks dangerous fugitive emissions over time. Even microscopic leaks pose severe hazards in thermal fluid systems. In contrast, a bellows seal provides a hermetically sealed metal barrier. Manufacturers weld a flexible metal cylinder directly to the moving stem. It delivers a zero-leakage, completely maintenance-free stem environment. You never have to worry about adjusting packing nuts again.

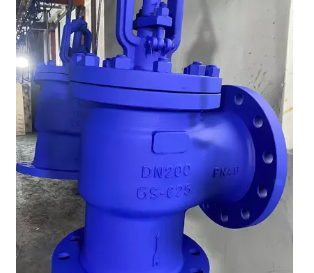

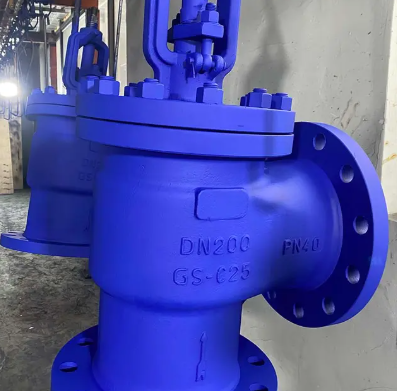

We must also evaluate the engineering benefits of the angle body design. Standard straight-through valves require significant piping space. An angle configuration alters the flow path by exactly ninety degrees. This geometry reduces the overall need for extra piping elbows. It lowers the system pressure drop by optimizing the flow coefficient (Cv). Furthermore, this specific shape naturally resists debris accumulation inside the valve body. Sludge and particulates wash straight down the discharge port.
You must balance your upfront investment against potential operational risks. A bellows angle globe valve requires a larger initial capital outlay. Complex welded assemblies simply cost more to manufacture. However, we frame this upgrade as a crucial insurance policy. It protects your facility against massive environmental agency fines. It prevents expensive fluid loss and catastrophic plant shutdowns. The elimination of fugitive emissions justifies the premium metallurgy instantly.
Installation planning requires careful attention to specific engineering details. Valve orientation dramatically affects overall system performance. You must determine the correct flow direction for your application. Engineers choose between "flow-to-open" and "flow-to-close" configurations.
Flow-to-open means fluid pressure pushes up against the bottom of the plug. This setup assists the actuator in opening the valve smoothly. Flow-to-close means fluid pressure pushes down on top of the plug. This configuration tightly seals the plug against the seat. Your choice depends heavily on system pressure dynamics and fail-safe safety requirements.
You also need to verify strict pressure and temperature ratings. Always cross-reference ASME B16.34 class ratings during the design phase. Compare these ratings against the specific gravity of the oil or steam. Check them against your maximum anticipated operating temperatures. A Class 150 rating handles drastically different pressures than a Class 800 rating.
We recommend a step-by-step shortlisting framework for efficient procurement:
Identify the exact media corrosivity and system purity requirements immediately. This step dictates your primary body material selection.
Calculate the required flow coefficient (Cv) and allowable pressure drop. This vital calculation determines your correct valve size and specific trim type.
Assess the strictness of local fugitive emission regulations thoroughly. This assessment decides whether you need standard packing or a bellows seal.
Determine your preferred connection ends based on piping standards. Choose between flanged, threaded, or welded ends for optimal security.
Take immediate action by gathering your exact service conditions before purchasing. Collect your maximum and minimum temperatures, accurate flow rates, and precise inlet pressures. You should prepare these exact metrics before consulting a manufacturer for a final quote.
A stainless steel valve functions as a high-performance industrial asset. It is definitely not a simple, universal plumbing commodity. Manufacturers purpose-build these advanced components for corrosive, high-purity, and extreme-temperature applications. They secure your most critical steam and oil services reliably. Using standard metals in these harsh environments guarantees premature failure.
We urge engineers and procurement teams to prioritize long-term system reliability. You should value continuous operational safety over the lowest initial purchase price. This forward-thinking mindset proves essential when handling hazardous or extremely high-value media. Cutting corners on materials always introduces unacceptable plant risks. Investing in the right metallurgy prevents catastrophic blowouts.
We encourage you to contact our technical sales team today. Please share your current piping and instrumentation diagrams (P&ID) with us. You can also submit your detailed process data sheets for review. Our engineering experts will provide precise valve sizing and ideal material selection guidance.
A: Yes, you can use them safely for thermal oil applications. However, you must ensure the packing and internal trim are correctly rated for your specific maximum temperature. We highly recommend specifying high-temperature graphite packing. Alternatively, utilizing bellows seals eliminates leakage risks entirely in extreme heat. Never use standard PTFE packing in high-temperature thermal oil lines.
A: The primary difference involves the internal stem sealing mechanism and body geometry. A bellows design replaces standard packing with a hermetically sealed metal accordion, preventing all leaks. The angle design features a 90-degree flow path. This unique shape eliminates extra piping elbows and reduces overall system pressure drop.
A: You should choose stainless steel to meet strict pure steam requirements in sanitary processing. Carbon steel rusts and contaminates clean systems. Furthermore, stainless alloys provide exceptional corrosion resistance against aggressive carbonic acid. This acid forms naturally in condensate return lines and destroys carbon steel piping systems very quickly.
A: Yes, they require specific preventive maintenance strategies. Stainless threads are highly prone to galling under thermal stress. You must apply correct anti-galling lubrication during assembly. Unless you upgrade to a bellows design, you also need to perform routine torque checks on the packing glands to prevent oil leaks.
