Developed for industrial operators, EPC contractors, and specialty process facilities requiring versatile, high-reliability fluid isolation solutions, our stainless steel hydraulic pneumatic industrial special gate valve is a premium, custom-engineered flow control component designed for extreme and specialized industrial operating conditions. Manufactured by Ruike Valve Group, a trusted provider of industrial valve solutions for specialized applications, this valve features an ultra-wide size range, broad pressure and temperature compatibility, and flexible actuation options including manual, electric, pneumatic, and hydraulic drives. Constructed from premium stainless steel and high-performance alloy materials, it delivers exceptional corrosion, erosion, and temperature resistance, making it the ideal choice for specialized industrial processes that demand uncompromising safety and reliability.

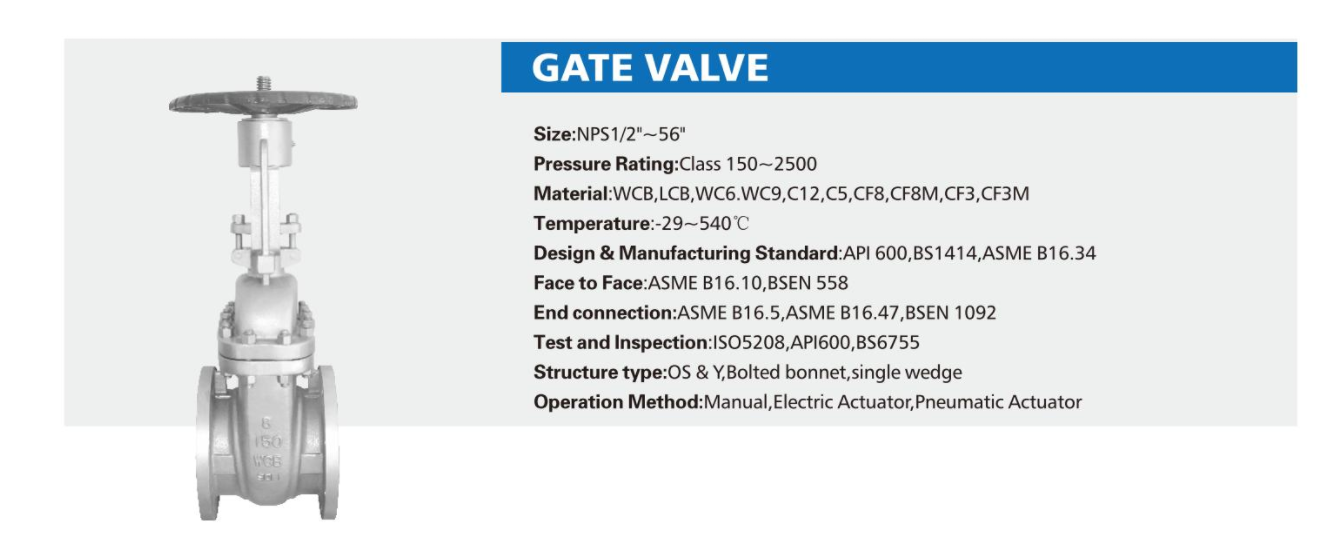

Parameter | Core Specification |
Size Range | NPS 1/2" ~ 56" |
Pressure Rating | Class 150 ~ Class 2500 |
Operating Temperature Range | -29°C ~ 540°C |
Body Materials | WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M |
Design & Manufacturing Standards | API 600, BS1414, ASME B16.34 |
Face to Face Standard | ASME B16.10, BSEN 558 |
End Connection Standard | ASME B16.5, ASME B16.47, BSEN 1092 |
Test & Inspection Standards | ISO5208, API 600, BS6755 |
Structure Type | OS&Y (Outside Screw & Yoke), Bolted Bonnet, Single Wedge |
Operation Options | Manual, Electric Actuator, Pneumatic Actuator, Hydraulic Actuator |
With a size range spanning NPS 1/2" to 56" and pressure ratings from Class 150 to Class 2500, this wide range industrial gate valve eliminates the need for multiple valve suppliers, streamlining procurement, reducing inventory costs, and ensuring consistent performance across small-diameter utility lines and large-diameter process mains.
Engineered to operate reliably across a -29°C to 540°C temperature range, the valve performs consistently in both cryogenic low-temperature and ultra-high-temperature process applications, including high-pressure steam systems and low-temperature fluid transfer lines.
The outside screw and yoke (OS&Y) structure provides clear visual indication of valve open/closed status, while the bolted bonnet design ensures safe, leak-free operation and simplified maintenance, making it ideal for high-risk process environments where safety is a top priority.
Crafted from premium stainless steel and high-performance alloy materials, the valve resists corrosion from aggressive chemical media, erosion from high-velocity flows, and wear from continuous operation, extending service life and reducing unplanned downtime for specialty process facilities.
Optimized for hydraulic and pneumatic actuation, the valve seamlessly integrates with high-cycle automated process systems, enabling fast, reliable remote operation and precise control for specialized industrial processes, with manual override options for emergency use.
This hydraulic pneumatic industrial gate valve is purpose-built for specialized and extreme industrial applications across core sectors, including:
Specialized Petrochemical & Fine Chemical Processing: Deployed in batch processing, high-temperature reaction systems, and corrosive chemical transfer lines in fine chemical and specialty petrochemical plants.
Thermal & Renewable Power Generation: Used in high-pressure steam circuits, boiler feedwater systems, and geothermal power plants, with wide temperature compatibility ensuring reliable performance in extreme thermal conditions.
Oil & Gas Upstream Production & Processing: Ideal for wellhead isolation, production separators, and sour gas processing systems, with corrosion-resistant materials handling harsh upstream operating conditions.
Industrial Desalination & Water Treatment: Used in large-scale seawater desalination plants, high-pressure reverse osmosis systems, and industrial wastewater treatment facilities, with stainless steel construction resisting saltwater corrosion.
Heavy-Duty Mining & Mineral Processing: Deployed in slurry transport lines, mineral processing circuits, and tailings management systems, with rugged construction resisting abrasive media and continuous high-cycle operation.
Our valve offers an ultra-wide size range from NPS 1/2" up to 56", making it suitable for both small-diameter utility lines and large-diameter industrial process mains.
The valve is engineered to operate reliably across a broad temperature range from -29°C to 540°C, supporting both low-temperature and ultra-high-temperature industrial applications.
Yes, the valve is fully compatible with hydraulic, pneumatic, and electric actuators for automated process control, with manual override options available for emergency operation.
All our valves are manufactured and tested in full compliance with API 600, BS1414, ASME B16.34, and ISO5208 standards, ensuring adherence to global industrial safety and performance requirements.
