For aggressive media, high-temperature service, or strict fugitive emission standards, standard carbon steel valves often fail prematurely. You need resilient materials to handle these extreme environments safely. Specifying the correct stainless steel globe valve is critical for maintaining precise flow regulation without risking system integrity. While globe valves offer superior throttling capabilities compared to gate or ball valves, their design inherently causes higher pressure drops. Pairing this internal design with the wrong stainless alloy or an inadequate seal type quickly leads to cavitation, galling, or serious non-compliance with environmental safety standards. We must evaluate every operational parameter carefully. This guide provides a comprehensive technical evaluation framework for selecting these vital components. You will learn how to compare material grades and match specific valve designs to your most demanding operational criteria.
Material Alignment: 304 stainless is sufficient for general corrosive resistance, but 316/316L is mandatory for chloride-heavy or highly acidic environments due to added molybdenum.
Emission Control: For toxic, flammable, or thermal fluid applications, upgrading to a bellows angle globe valve eliminates dynamic stem seal leakage and reduces required pipe fittings.
Operational Trade-offs: The high throttling precision of a globe valve comes at the cost of high flow resistance; accurate $C_v$ (flow coefficient) sizing is non-negotiable.
Compliance Priority: Purchasing decisions must align with ASME B16.34 for pressure-temperature ratings and FCI 70-2 for seat leakage classes.
Throttling operations put immense physical stress on internal valve components. Fluid passing through a restricted area accelerates rapidly. This velocity increase causes localized pressure drops. High velocity creates intense turbulence inside the valve body. Turbulence strips away the natural passivation layers on weaker metals. When pressure drops below the fluid's vapor pressure, cavitation occurs. Vapor bubbles form in the fluid stream. As the pressure recovers downstream, these bubbles collapse violently. The implosion force blasts away metal from the trim and body. Standard materials simply cannot survive this mechanical and chemical assault.
Austenitic stainless steel provides a massive advantage over standard carbon steel or brass. It resists severe oxidation. The metal forms a self-healing chromium oxide layer on its surface. This layer prevents rust and stops localized pitting. Carbon steel degrades rapidly in these conditions. Brass loses its mechanical strength when exposed to high temperatures. Stainless steel maintains its structural integrity across extreme temperature fluctuations. You can rely on it in cryogenic applications. It performs equally well in intense high-heat industrial processes. The material resilience minimizes the risk of catastrophic pipeline failures.
Best Practice: Always evaluate your fluid velocity profiles before selecting a trim material. High-velocity throttling often requires hardening the stainless steel trim with Stellite overlays to prevent premature wear.
Choosing the correct alloy dictates the operational lifespan of your equipment. We evaluate materials based on their chemical composition and the specific environment they will face. Not all stainless steels perform equally under pressure and corrosive attack.
This is the industry baseline for stainless alloys. It offers excellent general corrosion resistance. We specify CF8 for municipal water treatment facilities. It handles mild chemicals with ease. Food and beverage plants use it extensively for baseline sanitary applications. The material is strong and reliable under standard atmospheric conditions.
However, 304 stainless has distinct limitations. It is highly vulnerable to pitting corrosion in chloride-rich environments. You should never use it for seawater routing. High chloride concentrations strip the chromium layer faster than it can heal. This leads to rapid localized failure.
You must upgrade to CF8M for aggressive environments. This grade is mandatory for marine applications. Pharmaceutical processing relies heavily on 316 stainless. It is the standard for severe chemical handling in refineries. The core difference is the addition of molybdenum. Molybdenum significantly improves the alloy's resistance to chlorides and industrial solvents.
The "L" variant denotes a low carbon content. Standard 316 can experience carbide precipitation during welding. Heat causes carbon to bind with chromium. This depletes the protective layer near the weld. The 316L variant mitigates this precipitation. It is essential if your installation requires welded end-connections instead of flanged joints.
Common Mistake: Specifying standard 316 for butt-weld connections. The heat-affected zone will corrode rapidly. Always specify 316L for welded installations.
Some environments push beyond the limits of 316 stainless. We see this in extreme bottom-of-the-barrel (BoFu) refining scenarios. You must escalate to specialty alloys here. Duplex stainless steel offers double the yield strength of standard austenitic grades. It handles high-stress corrosive environments perfectly. Hastelloy becomes necessary for severe sour gas service. These alloys contain high nickel levels to resist severe acidic attacks.
Table 1: Globe Valve Material Grade Comparison
Material Grade | Key Alloy Addition | Primary Applications | Main Limitation |
|---|---|---|---|
CF8 (304) | Standard Chromium/Nickel | Water, mild chemicals, food/beverage | Pitting in chloride-rich media |
CF8M (316) | Molybdenum | Marine, pharma, severe chemicals | Carbide precipitation when welded |
316L | Low Carbon, Molybdenum | Welded pipeline systems | Slightly lower yield strength than 316 |
Duplex/Hastelloy | High Nickel, Nitrogen | Sour gas, extreme BoFu refining | High procurement cost and lead times |
The internal geometry of a valve dictates how fluid behaves as it passes through. You must match the body pattern to your piping layout and acceptable pressure loss limits.

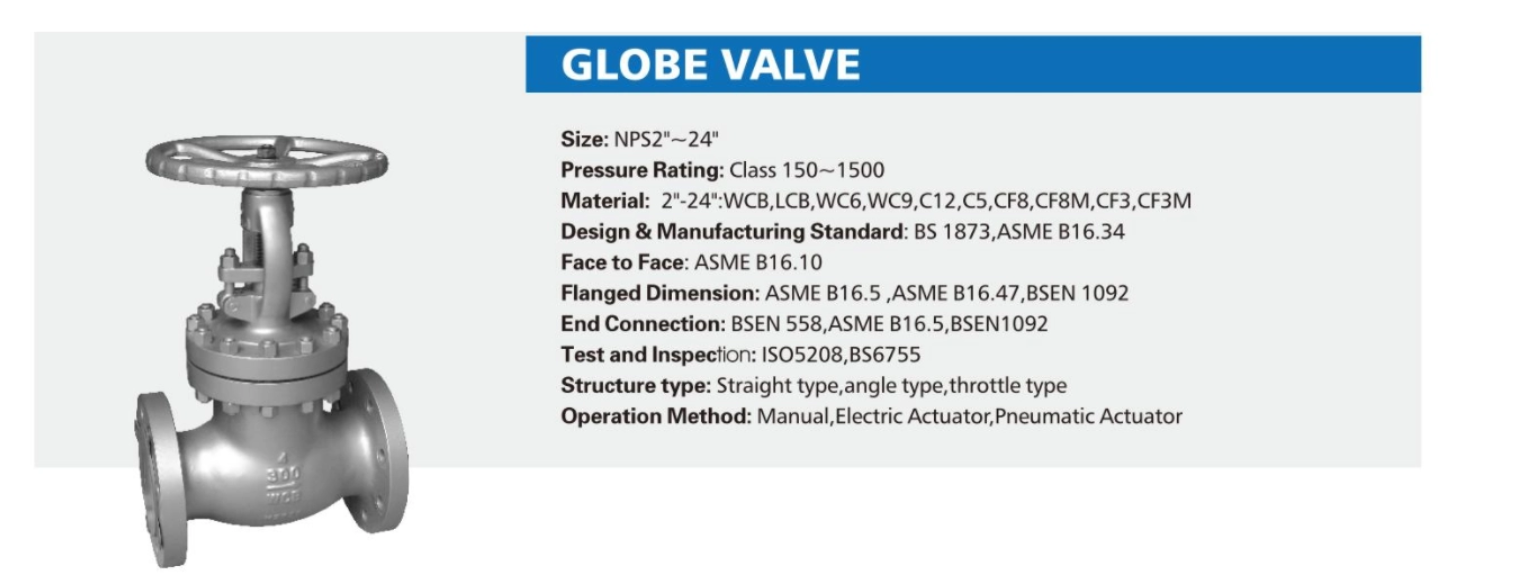

The T-pattern is the most common design. The fluid enters the body and shifts 90 degrees upward. It passes through the seat and shifts 90 degrees again to exit. This Z-shaped flow path creates a high pressure drop. Turbulence is significant inside the body. We recommend T-patterns for conventional throttling. They are ideal when installation space is limited and pressure loss is acceptable to the system design.
Angle pattern designs feature inlet and outlet ports set at exactly 90 degrees. The fluid enters, turns once, and exits downward. This design acts as both a valve and a pipe elbow. You eliminate the need for an extra pipe fitting. This reduces potential leak points in your system. It also lowers flow resistance significantly compared to standard T-patterns. Fluid dynamics are much smoother, which reduces wear on the internal trim components.
Fugitive emissions pose serious safety and environmental risks. A bellows angle globe valve solves this problem. It replaces traditional packing glands with a hermetically sealed metallic bellows barrier. This mechanism surrounds the stem. As the stem moves up and down, the bellows expand and contract like an accordion. The fluid never contacts the dynamic sliding stem.
This integration is essential for specific target applications. You must use it for zero-leakage requirements. Facilities handling volatile organic compounds (VOCs) mandate bellows seals. Thermal oil systems use them to prevent dangerous high-temperature leaks. Hazardous and toxic gases require this absolute containment.
However, you must assess the mechanical risks. Bellows are highly fatigue-sensitive. Constant cycling stresses the metal folds. You must verify the manufacturer's stroke-life ratings. Always specify multi-ply stainless steel bellows. Multi-ply designs offer superior pressure resistance. If one ply fails, the remaining plies prevent a sudden, catastrophic system blowout.
Proper sizing and rating verification ensure system safety. You cannot guess these parameters. Rigorous adherence to engineering standards separates a reliable pipeline from a dangerous hazard.
We evaluate valves against the ASME B16.34 standard. This standard dictates the maximum allowable working pressure at specific temperatures. The pressure rating for stainless steel drops significantly as system temperature increases. A Class 300 globe valve might handle 720 psi at room temperature. At 800°F, that allowable pressure drops drastically. You must plot your exact operating parameters against the ASME pressure-temperature charts. Never assume a pressure class rating remains static under thermal load.
The Flow Coefficient ($C_v$) represents the volume of water (in gallons per minute) that passes through the valve with a 1 psi pressure drop. Accurate sizing is critical for throttling.
Over-sizing: This is a frequent error. An oversized valve must operate very close to its seat to control flow. This narrow gap accelerates fluid violently. It causes "wire drawing," where high-velocity fluid cuts deep grooves into the metal seat. Control becomes highly unstable.
Under-sizing: An undersized valve acts as a permanent choke point. It causes excessive pressure drops across the system. The pumps must work harder. The fluid often flashes or cavitates, destroying the internal components rapidly.
Calculate your required $C_v$ based on maximum, normal, and minimum flow rates. Select a valve where normal flow occurs between 50% and 70% of the valve's total opening.
Throttling valves are rarely designed for absolute isolation. The ANSI/FCI 70-2 standard defines acceptable seat leakage classes. Class IV is the industry standard for metal-to-metal seating. It allows a very small, strictly defined leak rate during shut-off. Metal-seated stainless valves are incredibly durable. They handle high temperatures and abrasive media perfectly. However, you must maintain realistic expectations regarding absolute shut-off.
Class VI represents a bubble-tight seal. This requires a soft elastomer or PTFE seat. Soft seats cannot survive high temperatures or abrasive particles. You must balance the need for tight shut-off against the fluid's physical properties.
A rigorous procurement process prevents installation delays and operational failures. Use this checklist to verify every detail before issuing a purchase order.
Media Compatibility: Clearly define the fluid state. Is it a liquid, gas, or steam? Assess the chemical corrosiveness. Identify any solid particulates in the stream. Abrasive particles require a hardened trim, such as a Stellite overlay, to prevent rapid erosion. Document the exact flow rate to ensure proper $C_v$ sizing.
End Connections: Choose the right interface for your piping. Flanged ends (RF/RTJ) offer ease of maintenance. You can unbolt and remove them quickly for repairs. Socket-weld or butt-weld connections are better for high-pressure installations. They provide permanent, leak-free joints but require cutting the pipe for maintenance.
Actuation Readiness: Manual handwheels work for accessible, simple systems. If you plan to automate the process later, evaluate the stem design now. The yoke must be robust enough to support heavy pneumatic or electric actuators. Ensure the manufacturer offers standardized mounting pads for future retrofitting.
Vendor Documentation: Never compromise on paperwork. Demand comprehensive Material Test Reports (MTRs) to verify the exact chemical composition of the stainless steel alloy. Require API 598 hydro-testing certificates to prove structural integrity. Verify the manufacturing origins. Counterfeit alloys are common and pose severe safety risks in high-pressure applications.
Best Practice: Ask your vendor to supply the valve's flow characteristic curve. This document proves how linearly the valve will respond to actuation commands during throttling.
The choice of a stainless steel throttling component requires balancing metallurgical resilience with intense fluid dynamic realities. Standard materials simply fail when exposed to cavitation, turbulence, and corrosive attack. By selecting the correct austenitic grade and internal body pattern, you protect your system from catastrophic failures. Bellows seal integration further guarantees environmental compliance in hazardous applications.
Your next steps require precise data collection. Compile your media chemistry, operating temperatures, and acceptable pressure drop limits before requesting quotes. Do not guess the flow coefficient. Promptly consult with a qualified applications engineer to finalize your sizing calculations and trim configurations. Taking these precise actions ensures your piping system operates safely and efficiently for years to come.
A: No. Globe valves are strictly unidirectional. Installing them backward forces fluid against the top of the disc, damaging the stem and making actuation extremely difficult. Ensure alignment with the flow arrow cast on the body.
A: It serves two specific purposes: the angle design reduces the number of pipe fittings (and consequently, pressure drop), while the bellows seal guarantees zero fugitive stem emissions, making it ideal for toxic or thermal fluid routing.
A: While a globe valve can achieve shut-off, its primary function is throttling. Gate valves provide minimal pressure drop and are preferred for pure on/off applications, whereas globe valves are specified when flow volume must be actively modulated.
A: Lifespan is measured in cycles rather than time, heavily dependent on the stroke length and operating pressure. High-quality multi-ply stainless bellows typically rate between 5,000 to 10,000 cycles before requiring replacement, though preventive maintenance schedules should dictate inspection intervals.
