How Does a Bellows Globe Valve Reduce Stem Leakage?

Inquire

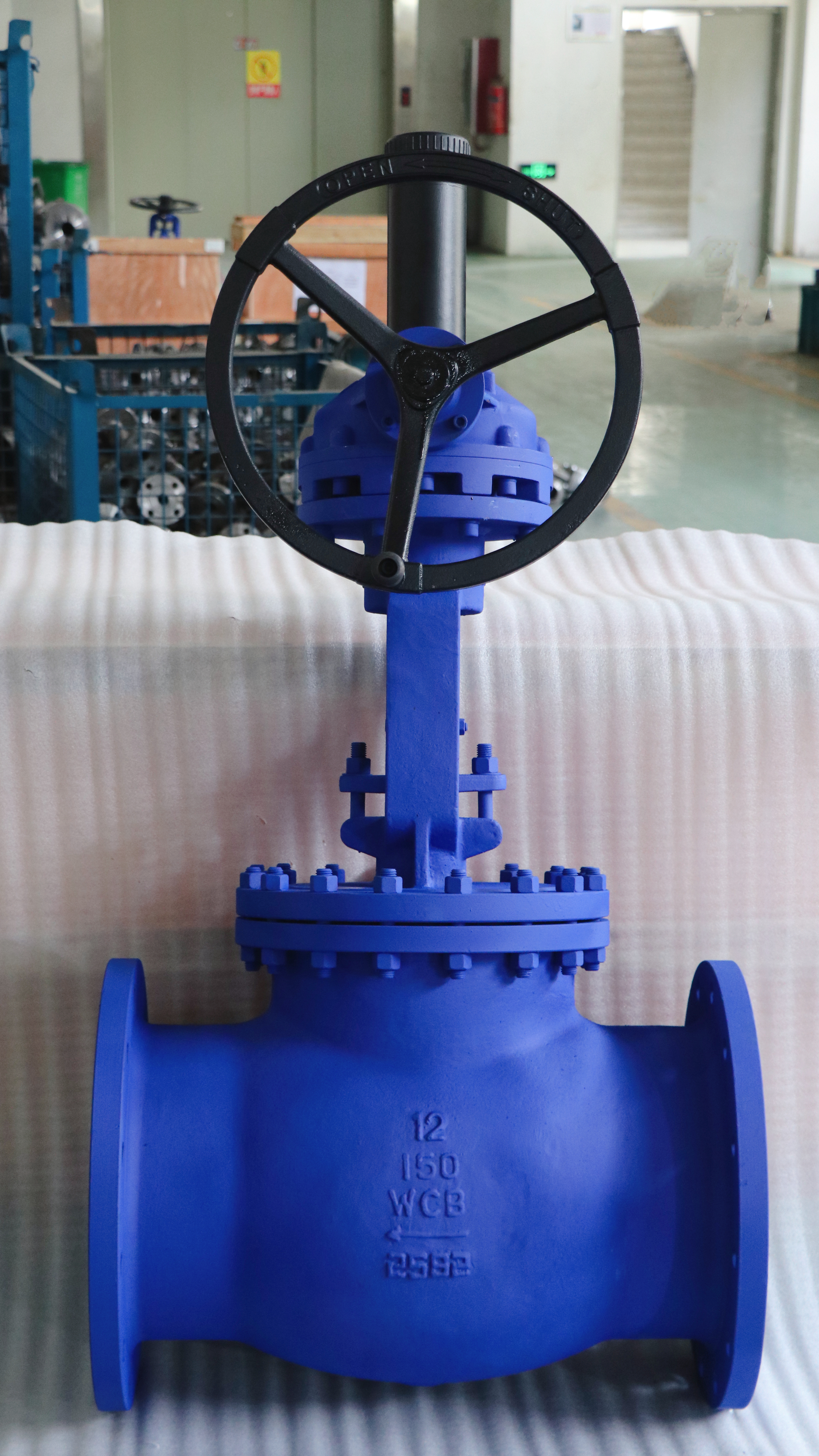

Standard dynamic stem packing inevitably degrades over time in harsh industrial environments. Constant friction, extreme thermal cycling, and aggressive pressure variations constantly stress traditional mechanical seals. This continuous degradation leads directly to fugitive emissions, dangerous product loss, and severe environmental compliance fines. Plant operators handling hazardous, toxic, or highly volatile media simply cannot afford these unpredictable and dangerous atmospheric leaks.

Bellows seal technology solves this persistent engineering problem directly. It replaces failure-prone dynamic friction with a static, expanding, and contracting metallic barrier. This innovative design isolates the process fluid completely from the moving valve stem components. It creates a robust, hermetic seal impervious to traditional mechanical wear.

This comprehensive guide breaks down the underlying engineering mechanics and practical evaluation criteria for upgrading from standard packing to advanced bellows seal configurations. We will explore how these mechanisms eliminate stem leakage entirely. You will also learn how to specify cycle limits, evaluate construction materials, and implement these highly specialized components safely.

Key Takeaways

  • Metallic Hermetic Seal: Bellows form a seamless metallic barrier between the fluid medium and the environment, effectively reducing stem leakage to zero under normal operating conditions.

  • Dual-Seal Failsafe: Industrial-grade bellows valves retain standard graphite packing as a secondary backup to prevent catastrophic atmospheric leaks if the bellows fatigue.

  • Cycle Life Matters: The decision to upgrade hinges on matching the bellows manufacturing method (formed vs. welded) and material to the system's expected actuation frequency and operating pressure.

The Limitation of Stuffing Boxes in a Standard Globe Valve

Industrial piping systems handle intense pressures and volatile temperatures every single day. Most standard globe valve designs rely on sheer compressive force applied directly to a graphite or PTFE stuffing box. Maintenance personnel tighten a packing gland to compress this soft material tightly around the metal stem. This action creates a mechanical friction seal. However, this traditional approach carries several inherent and unavoidable mechanical flaws.

Friction and Accelerated Wear

Every single actuation cycle scrapes the soft packing material against the rigid metal stem. This continuous physical movement creates microscopic scoring on the stem surface. These tiny scratches act like abrasive sandpaper against the packing material. This cycle accelerates wear rapidly. It eventually creates hidden, microscopic leak paths for pressurized fluid to escape into the atmosphere.

Thermal Loosening and Cycling

Rapid temperature fluctuations compound the sealing problem significantly. Dissimilar thermal expansion occurs during routine plant startup and shutdown phases. The rigid stem, the cast bonnet, and the soft packing material all expand and contract at entirely different rates. This mismatch causes the previously tight mechanical seal to loosen. Maintenance teams must routinely revisit these installations for constant gland nut retorquing.

Severe Compliance Risks

These mechanical limitations introduce severe environmental and safety compliance risks. Strict modern fugitive emission mandates, such as EPA regulations or TA-Luft standards, demand near-zero leakage performance. Standard stuffing boxes simply cannot meet these stringent requirements consistently over a long operational lifespan. They remain entirely unsuitable when your process involves Volatile Organic Compounds (VOCs), lethal chemicals, or highly flammable media. A sudden failure introduces unacceptable risks of environmental contamination and immediate safety hazards.

Common Mistakes in Standard Packing

  • Overtightening the gland nuts in an attempt to stop a minor leak, which crushes the packing and binds the valve stem entirely.

  • Ignoring early signs of stem scoring, which guarantees any new replacement packing will fail almost immediately.

  • Failing to account for thermal expansion when torquing cold valves.


The Mechanism: How Bellows Isolate the Valve Stem

How exactly do engineers eliminate the inherent friction of a dynamic seal? The solution lies in the specialized bellows cartridge. This vital component consists of a highly flexible, accordion-like metallic cylinder. Manufacturers weld the bottom of this cylinder directly to the lower valve stem. They weld the top section securely to the internal bonnet surface. This configuration forms a solid, unbroken physical barrier between the fluid and the outside environment.

Static Versus Dynamic Sealing

As the operator moves the stem up and down to open or close the flow path, the bellows compress and expand vertically like a tightly coiled spring. The metallic seal itself remains completely unbroken and static at all times. We eliminate the dynamic sliding friction point entirely. Process fluid never actually touches the moving parts of the upper stem or the secondary packing area during normal operation.

Internal vs. External Pressurization

Engineers must carefully evaluate how fluid pressure acts upon the delicate metal folds. We generally classify this interaction into two specific categories:

  1. Internal Pressurization: The process fluid enters the inside of the bellows cylinder. This pushes outward against the metal folds. Designers rarely use this for high-pressure systems because it can cause the metal to balloon and rupture.

  2. External Pressurization: The fluid surrounds the outside of the bellows assembly. The pressure pushes inward, naturally compressing the cylinder. This external method provides vastly superior mechanical stability under intense system pressure. It prevents structural buckling.

The Secondary Backup Failsafe

Many plant managers express natural engineering skepticism about relying on thin metal components. Bellows undeniably possess a finite fatigue life. Metal bending repeatedly will eventually crack. To address this legitimate concern, manufacturers include a secondary traditional stuffing box positioned above the bellows cartridge. This backup acts as a critical environmental failsafe. If the primary metallic cartridge ruptures unexpectedly, the traditional graphite packing safely contains the escaping fluid. This smart dual-seal design prevents a catastrophic blowout while giving operators time to isolate the line.

Evaluation Dimensions: Materials and Cycle Life

Selecting the correct construction material dictates the ultimate success of your installation. A standard stainless steel globe valve functions perfectly well for many conventional fluids like thermal oil or clean steam. However, highly aggressive media demand significantly elevated metallurgy.

Critical Material Selection

Corrosive chemicals easily induce stress corrosion cracking in basic steel alloys. When dealing with extreme acids or chlorides, you must upgrade the bellows material. Engineers frequently specify Hastelloy C276, Inconel 625, or pure Titanium. These specialized alloys prevent premature degradation. You must match the alloy carefully against your specific chemical concentration and operating temperature.

Formed vs. Welded Bellows Technology

Engineers must choose between two primary manufacturing methods based on the expected actuation frequency and system pressure. The manufacturing style drastically alters performance metrics.

Table 1: Hydroformed vs. Edge-Welded Bellows Comparison

Feature

Hydroformed Bellows

Edge-Welded Bellows

Manufacturing Process

Formed from a single metal tube using hydraulic pressure.

Individual thin metal plates welded together at the edges.

Wall Thickness

Relatively thick walls.

Very thin, highly flexible walls.

Pressure Resistance

Excellent capability to handle extreme high-pressure surges.

Moderate pressure handling capability.

Expected Cycle Life

Lower maximum cycle life (prone to stiffness fatigue).

Exceptionally high cycle life (highly elastic).

Particulate Vulnerability

More robust against suspended solid impacts.

Highly susceptible to damage from trapped debris.

Defining Stroke and Fatigue Limits

You must define project success criteria based on manufacturer-stated cycle life limits. Every bellows unit has a mathematical fatigue limit. A heavy-duty industrial unit might guarantee 5,000 to 10,000 full stroke cycles before structural fatigue failure inevitably occurs. Knowing your exact plant actuation frequency helps you predict exactly when to schedule preventive cartridge replacement. Operating a unit past its rated cycle count guarantees an eventual internal rupture.

Configuration Logic: Straight-Pattern vs. Bellows Angle Globe Valve

Internal flow paths require rigorous engineering evaluation. The expanding metallic components naturally take up significant internal volume inside the valve body. This physical volume reduction restricts fluid flow, potentially increasing the overall pressure drop across the unit. You must account for this specific flow restriction (reduced Cv value) during your initial pipeline sizing calculations.

Straight-Pattern Limitations

Standard T-pattern or straight configurations create a tortuous internal flow path. The rushing fluid must navigate complex, sharp internal geometries to pass through the seat. This convoluted path exacerbates internal turbulence. Severe turbulence increases pressure loss and induces vibration. The delicate metallic convolutions suffer tremendously from this constant turbulent shaking, which drastically reduces their fatigue life.

The Angle Valve Alternative

To mitigate these destructive flow dynamics, specifying a bellows angle globe valve provides an ideal engineering solution for 90-degree pipe turns. This specific configuration solves multiple problems simultaneously.

  • Reduced Piping Fittings: It eliminates the need for an external 90-degree pipe elbow, streamlining the installation footprint.

  • Optimized Fluid Dynamics: It minimizes pressure drop significantly by providing a much smoother, single-turn flow path.

  • Debris Management: The smoother internal transition prevents heavy particulate buildup. Accumulated dirt could easily lodge between metallic folds and damage the delicate convolutions during compression.

Cryogenic Service Applications

Deep cold applications require even more specialized configurations. Facilities use specialized Y-pattern bodies and extended bonnet angle designs for cryogenic services (like liquid nitrogen or LNG). Standard mechanical packing fails miserably in cryogenics because freezing atmospheric moisture penetrates the seal and destroys the material. The extended bonnet design keeps the delicate bellows safely away from the ultra-cold fluid zone, allowing ambient air to warm the upper stem assembly safely.

Implementation Risks and Maintenance Realities

Upgrading your facility to hermetic sealing technology introduces distinct operational rules. You must train your frontline maintenance teams to handle these highly specific mechanical risks.

Risk 1: Devastating Torsional Stress

Engineers design these metallic cylinders to accommodate axial movement exclusively. They compress and expand vertically along the stem axis. They absolutely cannot handle twisting or rotational motions. Applying rotational torque will instantly shear the thin metallic folds. You must utilize specialized non-rotating stem designs. Manufacturers install robust anti-torsion pins to prevent the lower stem from rotating during standard wheel actuation. If a maintenance worker removes these pins carelessly, they will destroy the internal seal immediately upon the next actuation.

Risk 2: Water Hammer and Particulate Damage

Suspended solid particles pose a massive threat to system longevity. Tiny particulates easily lodge deep inside the tightly packed metallic convolutions. When the operator closes the valve, the compressing folds crush these trapped solids directly against the thin metal wall, causing instant micro-punctures. Furthermore, severe water hammer easily deforms the entire cartridge structure. You should always install high-quality upstream strainers to catch pipeline debris before it ever enters the main body chamber.

Proactive Monitoring and Inspection

Smart plant operators utilize the built-in leak-off port effectively. Manufacturers intentionally locate this threaded port exactly between the primary bellows cartridge and the secondary graphite packing. You can connect electronic pressure sensors, manual gauges, or chemical sniffers directly to this port. It helps you detect a microscopic internal failure long before a dangerous atmospheric leak breaches the secondary failsafe.

Repairability Constraints

Maintenance teams must understand strict repair limitations. Manufacturers typically weld the delicate cylinder directly to the heavy bonnet assembly to guarantee a perfect seal. You cannot simply swap out a broken metal cartridge on a standard workbench using basic hand tools. Replacing a ruptured internal unit almost always requires purchasing and installing an entirely new bonnet assembly as one cohesive unit.

Conclusion

Choosing the correct sealing mechanism directly dictates your operational safety margins and environmental compliance status. You can comfortably reserve standard mechanical packing designs for relatively benign utilities like cooling water or low-pressure heating steam. However, you should strongly specify hermetic metallic seal technology for any applications involving toxic chemicals, highly flammable gases, or dangerous thermal transfer fluids.

The initial upfront investment in this advanced technology acts as a robust industrial insurance policy. It actively protects your facility against crippling emission fines, unexpected hazardous leaks, and catastrophic plant safety incidents. Upgrading your infrastructure requires precise execution and careful component matching.

To implement this technology successfully into your existing systems, follow these actionable steps:

  1. Consult directly with a qualified manufacturer to calculate your required actuation cycle life accurately.

  2. Verify exact material compatibility for your specific, aggressive process media to avoid stress corrosion.

  3. Request highly accurate sizing charts to account for internal flow restrictions and reduced Cv values.

  4. Install appropriate upstream filtration systems to protect the delicate internal convolutions from debris.

FAQ

Q: Can a bellows seal globe valve be used for throttling?

A: Yes, you can use them for moderate throttling, but you must proceed with extreme caution. High-velocity fluid throttling creates intense internal turbulence and mechanical vibration. This continuous shaking induces premature metal fatigue directly on the delicate convolutions. If you require aggressive flow control, consult the manufacturer for specialized anti-vibration trim designs.

Q: What happens if the bellows rupture during operation?

A: Industrial units feature a built-in secondary backup seal. If the primary metallic structure ruptures, the secondary graphite packing instantly contains the internal leak. This dual-seal failsafe prevents a dangerous atmospheric chemical release. A dedicated tell-tale port alerts facility operators to the internal rupture, allowing plenty of time for a safe system shutdown.

Q: How does the initial cost compare to a standard globe valve?

A: You can expect the initial capital expenditure to be roughly two to three times higher than a traditional packed valve. However, this upfront investment entirely eliminates fugitive emissions, prevents highly expensive chemical product loss, and drastically reduces ongoing maintenance labor. It proves highly beneficial in applications demanding strict zero-leakage performance.

Q: Do bellows seal valves require maintenance?

A: The primary metallic stem seal itself is entirely maintenance-free. You do not need to constantly retorque packing glands like traditional designs. However, you must perform routine visual or sensor checks of the leak-off port to monitor internal integrity. You must also schedule a complete lifecycle replacement of the entire assembly based on actuation counts.
