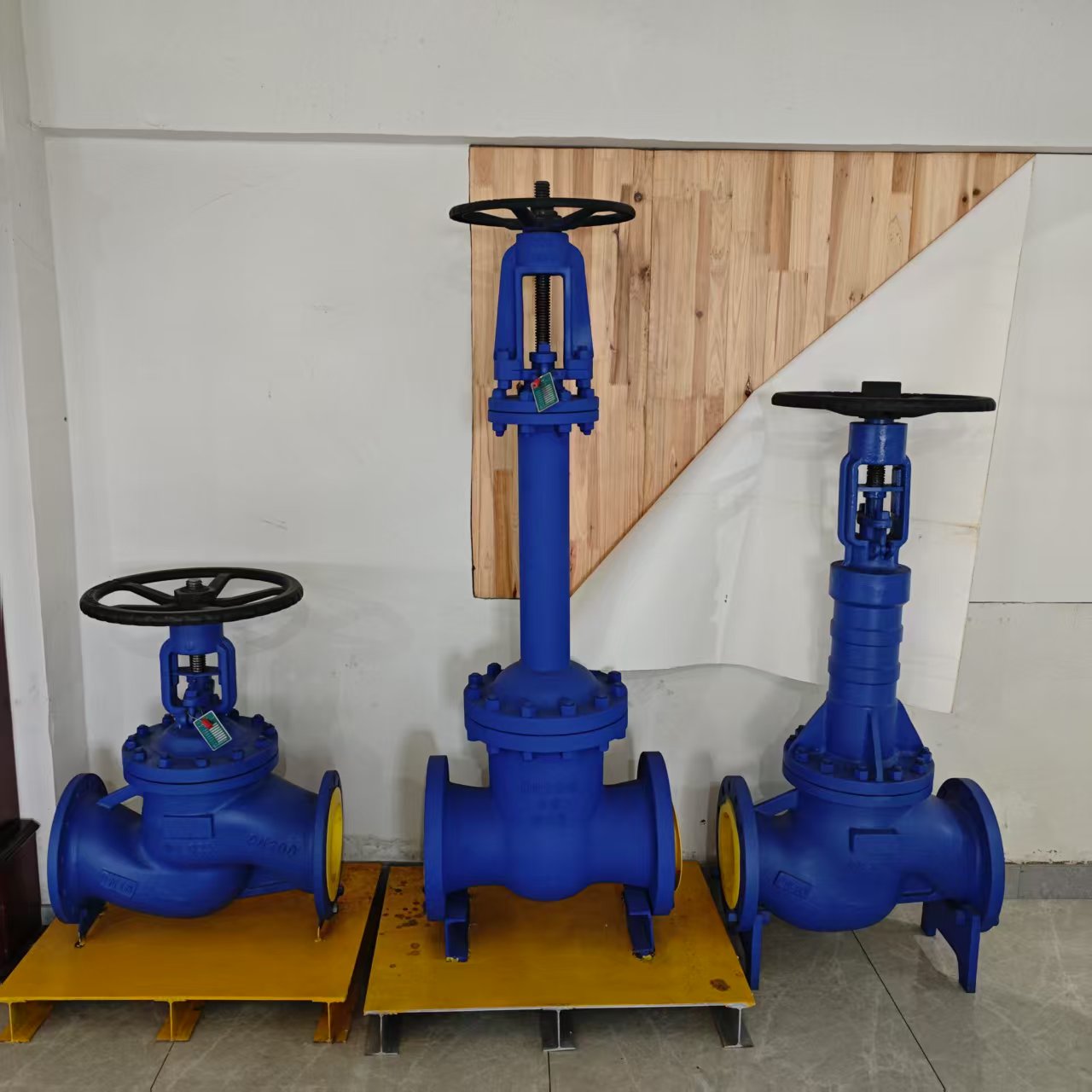

Specifying a high-pressure globe valve goes far beyond matching a pipeline's maximum operating pressure. Industrial fluid control demands precision. This is especially true when dealing with severe service conditions. Incorrect pressure class selection introduces two major liabilities. Under-specifying risks catastrophic structural failure, hazardous fugitive emissions, and severe non-compliance penalties. Conversely, over-specifying inflates capital expenditure needlessly. It also forces procurement teams to integrate unnecessarily massive actuators.
We will explore a strict, standard-driven framework based on ASME B16.34 for evaluating pressure ratings. You will learn how temperature alters material strength. We will explain why pressure drops dictate trim design. Finally, you will discover how to confidently shortlist the correct valve for your next severe service application.
Pressure classes are not static; they are deeply tied to operating temperatures via Pressure-Temperature (PT) ratings.
Material selection directly dictates a valve’s maximum allowable working pressure at elevated temperatures.
High pressure drops inherent to globe valves require specific trim selections to prevent cavitation and pressure drift.
Actuator sizing and stem design must scale proportionally with the selected pressure class to ensure reliable shutoff.
You cannot evaluate a pressure rating in a vacuum. The American Society of Mechanical Engineers (ASME) established the B16.34 standard to provide a universal baseline. This framework classifies valves into standardized tiers. Common classes include Class 900, 1500, and 2500. Some severe applications even demand Class 4500. These classifications establish the continuous operation boundaries for a valve body.
Pressure and temperature share an inverse relationship. We define this dynamic through the Pressure-Temperature (PT) curve. A valve easily contains extreme pressure at room temperature. However, it loses containment capability as heat increases. Consider a Class 1500 carbon steel valve. It might safely handle 3,600 psig at ambient temperatures. Raise that system to 1000°F, and its maximum allowable pressure drops drastically. The metal expands and weakens. The structural integrity of the pressure vessel shifts.
Evaluating "high pressure" in isolation remains a critical engineering flaw. You must base every selection on the maximum coincidental pressure and temperature. This means identifying the absolute highest pressure the system reaches at its maximum thermal load. Failing to map this intersection invites catastrophic failure.
Best Practice: Always consult the specific ASME B16.34 PT tables for your exact material group before finalizing a class rating.
Common Mistake: Relying on nominal operating conditions rather than peak transient conditions during startup or shutdown phases.
Material chemistry dictates pressure retention at scale. The body and trim materials you select directly manipulate the PT curve. Let us break down the primary material categories used in severe service environments.
Carbon steel serves as the industry standard for high-pressure systems. Common grades include WCB (cast) and A105 (forged). They offer excellent tensile strength at moderate temperatures. However, carbon steel rapidly loses structural integrity above 800°F. When crossing this thermal threshold, the effective pressure rating plummets. You can no longer rely on carbon steel for high-temperature containment.
When corrosion resistance and thermal stability become priorities, you should specify a stainless steel globe valve. Common grades include CF8M and F316. Stainless steel offers superior longevity in harsh chemical environments. However, its PT degradation curve differs heavily from carbon steel. You must strictly cross-reference ASME material group tables. A Class 1500 stainless valve will not have the identical pressure rating curve as a Class 1500 carbon valve.
Alloy steels handle the most extreme environments. Grades like F22 and F91 dominate power plant applications. They resist graphitization and creep at extreme temperatures. You need alloy steel when pushing Class 2500 and Class 4500 boundaries in supercritical steam applications.
Material Category | Common Grade | Optimal Temp Range | High-Temp Behavior |
|---|---|---|---|
Carbon Steel | WCB, A105 | -20°F to 800°F | Rapid tensile strength loss above 800°F. |
Stainless Steel | CF8M, F316 | -425°F to 1500°F | Excellent corrosion resistance; unique PT curve. |
Alloy Steel | F22, F91 | Up to 1200°F+ | Resists creep and graphitization in severe service. |
You need a repeatable methodology to navigate ASME standards. Follow this four-step framework to determine the exact pressure class required for your pipeline.
Start by identifying your Maximum Allowable Working Pressure (MAWP). Next, determine your Design Temperature. Do not base your selection solely on nominal operating conditions. Engineers must account for pressure spikes, thermal shocks, and emergency shutdown scenarios. You map the absolute worst-case operating parameters to establish a safety baseline.
These specific valves create inherently higher pressure drops than ball or gate valves. The fluid must change direction multiple times as it passes through the body. Calculate the maximum differential pressure across the seat. A massive pressure drop generates extreme velocity. Ensure the selected body class and internal trim can handle this severe mechanical stress without suffering from rapid erosion.
You now have your MAWP, design temperature, and material choice. Use the ASME B16.34 tables to find their intersection. Locate your material group in the standard. Trace the temperature row to your required pressure column. This determines your minimum required Class. If your parameters exceed Class 1500 limits by even a small margin, you must upgrade to Class 2500.
The chosen pressure class must align perfectly with your pipeline connections. Standard Raised Face (RF) flanges often fail under severe stress. For Class 900 and above, engineers generally mandate Ring Type Joint (RTJ) flanges. Alternatively, butt-weld ends provide the most secure, leak-free connection for high-pressure installations. Ensure your piping layout accommodates these robust connection standards.
High-pressure environments ruthlessly exacerbate internal wear. Velocity increases drastically. This leads to severe cavitation and flashing. Selection must go beyond the external body class. You must scrutinize the internal trim configurations.
Trim variations play a huge role in performance. Unbalanced trims represent the standard design. The actuator must fight the full force of the system pressure to close the plug. In high-pressure classes, this requires an impractically large actuator. Balanced trims solve this problem. A cage-guided balanced trim allows upstream pressure to equalize above the plug. This drastically reduces the required actuator thrust. You achieve smoother control and utilize smaller, more efficient automation packages.
Fugitive emissions present a massive compliance risk. Lethal, toxic, or high-purity media require absolute containment. Chlorine, hydrogen, and thermal fluids exploit any weakness in standard stem packing. High system pressure forces these dangerous gases through microscopic gaps. To mitigate this risk completely, introduce a bellows angle globe valve. The metallic bellows weld directly to the stem and bonnet. This creates an impenetrable physical barrier. It provides the definitive solution for zero stem-leakage in extreme pressure applications.
Evaluate the fluid state to predict cavitation risks.
Select balanced trims for Class 1500+ sizes over 2 inches.
Specify bellows seals for all highly toxic high-pressure media.
Engineers face numerous mechanical and financial hurdles during implementation. Upgrading your pressure class triggers a chain reaction of design changes. You must anticipate these shifts to keep procurement on track.
Actuator sizing mismatches happen frequently. Moving from a Class 900 to a Class 1500 body requires a much thicker stem. The valve must withstand higher internal forces without buckling. A thicker stem increases packing friction. Higher friction requires a significantly larger pneumatic or electric actuator. Failing to scale the actuator proportionally guarantees the valve will stall or leak during operation.
Pressure drift plagues poorly specified high-pressure lines. We define pressure drift as the gradual loss of sealing capability over time. Seat erosion remains the root cause. Extreme fluid velocity scours the seating surfaces. Improper trim class selection accelerates this destruction. Mitigation requires hardened trim materials. Manufacturers frequently apply Stellite overlays to the plug and seat. This cobalt-chromium alloy resists high-velocity erosion and ensures long-term shutoff integrity.
Manufacturing methods also shift. At high pressure classes, transitioning from cast bodies to forged bodies is often necessary. Castings inherently carry porosity risks. Microscopic voids can compromise the pressure boundary. Forgings eliminate porosity through intense mechanical compression. However, specifying forged Class 2500 bodies impacts lead times and procurement budgets significantly. You must account for these manufacturing realities early in the design phase.
Selecting the right pressure class is a critical exercise. You must balance ASME standards, material capabilities, and actuator constraints against real-world system realities. Relying on nominal pressure alone guarantees failure in severe service environments. Temperature, velocity, and fluid chemistry dictate the final structural requirements.
We advise engineers to compile rigorous data before requesting a quote. Document your exact media, Maximum Allowable Working Pressure, design temperature, and maximum differential pressure. Map these data points against the ASME B16.34 tables to establish a baseline. Consider whether your process demands balanced trims or zero-leakage bellows seals.
Take action today to secure your pipeline. Consult with the manufacturer's technical team to run a final sizing diagnostic. Ensure they conduct strict API 598 testing compliance before shipment. By adhering to this framework, you guarantee safe, reliable, and compliant fluid control.
A: Yes, provided the trim is specifically designed for throttling. You should use a cage-guided or parabolic trim for optimal control. Furthermore, the body must be correctly rated for the maximum differential pressure to prevent severe cavitation and internal damage.
A: Certain internal designs require a minimum pressure to function. Pressure-balanced trims with pilot valves rely on system fluid to assist in sealing. A minimum differential pressure ensures the seals set properly and allows the valve to actuate without stalling.
A: Class 1500 is an ASME/ANSI standard designation used primarily in imperial systems. PN 250 is a DIN/EN standard used in metric systems. While they offer roughly equivalent working pressures, their flange dimensions, face-to-face standards, and precise PT curves differ entirely. They cannot be directly swapped without engineering review.
A: Often, yes. In Class 1500 or 2500 systems, opening a large valve against full differential pressure requires immense torque. A smaller bypass valve is installed to equalize pressure across the main valve before opening. This reduces wear and prevents seat damage from extreme initial velocity.
