Product Parameters

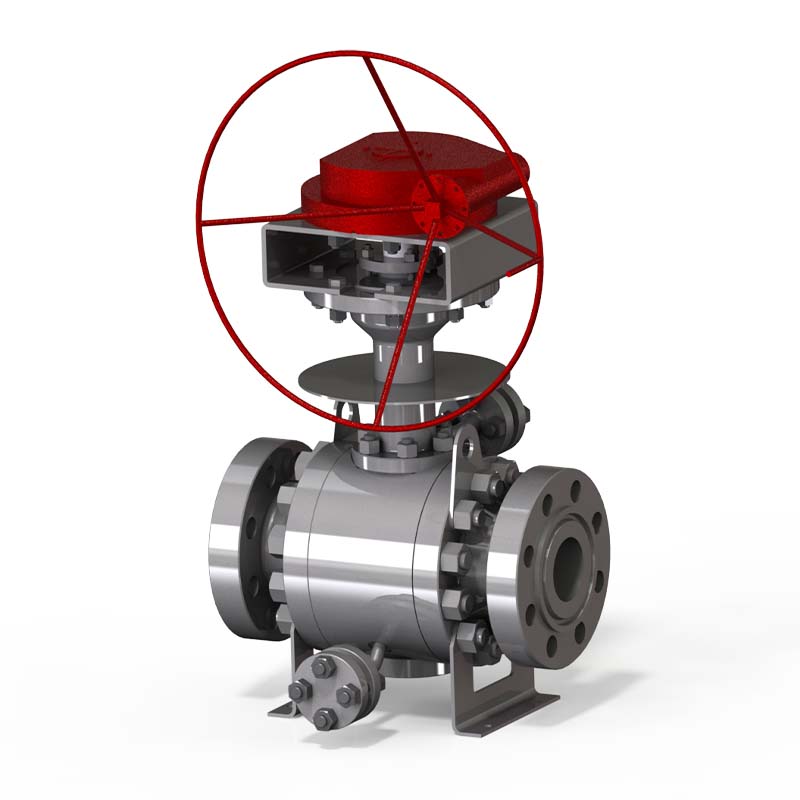

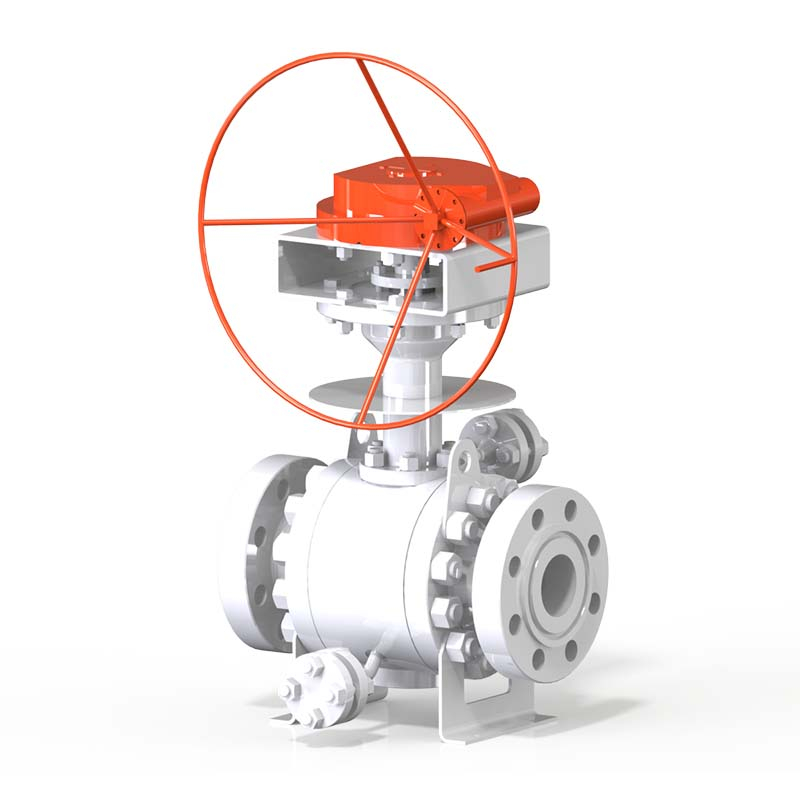

To ensure optimal performance in a variety of demanding applications, our Stainless Steel Customizable Trunnion Ball Valve is designed with a robust set of specifications. The following product parameters outline the key features that make this valve ideal for high-pressure, high-temperature environments, offering flexibility and reliability across diverse industrial systems. Let’s take a closer look at the detailed specifications that highlight its suitability for your unique requirements.

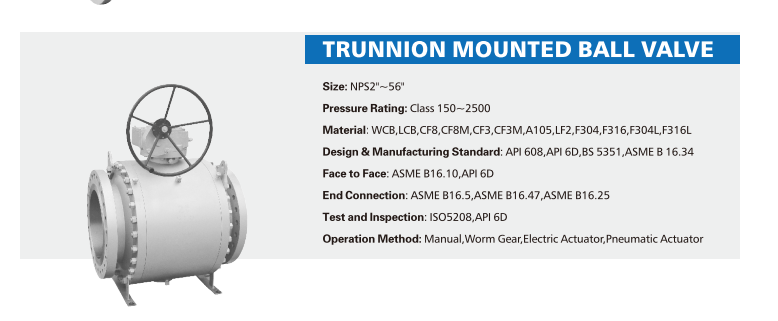

| Parameter | Specification |
| Size | NPS 2" ~ 56" |
| Pressure Rating | Class 150 ~ 2500 |
| Material | WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L |
| Design & Manufacturing Standard | API 608, API 6D, BS 5351, ASME B16.34 |
| Face to Face | ASME B16.10, API 6D |
| End Connection | ASME B16.5, ASME B16.47, ASME B16.25 |
| Test and Inspection | ISO5208, API 6D |
| Operation Method | Manual, Worm Gear, Electric Actuator, Pneumatic Actuator |
Product Features
Durable Construction:
Crafted from high-quality materials such as WCB, LCB, CF8, CF8M, CF3, CF3M, and stainless steel alloys (F304, F316, F304L, F316L), ensuring exceptional strength and resistance to corrosion and wear. This durability is perfect for high-pressure and high-temperature environments.
Trunnion-Mounted Design:
The trunnion mounting of the ball valve provides superior stability, making it highly effective in managing high-pressure fluid flow. This design reduces wear and tear, leading to enhanced performance and a longer service life.
Customizable Options:
Available in a wide range of sizes, from NPS 2" to 56", and pressure ratings from Class 150 to 2500, this valve can be tailored to fit your specific system requirements. The valve also offers various end connections and operation methods to ensure compatibility with your existing equipment.
Precise Operation:
Whether manual, worm gear, electric actuator, or pneumatic actuator, the valve offers precise and reliable operation, allowing for smooth control over fluid flow.
Excellent Performance:
Designed to operate in demanding conditions, the valve’s advanced sealing technology ensures leak-free operation, even in high-pressure, high-temperature systems.
Company information

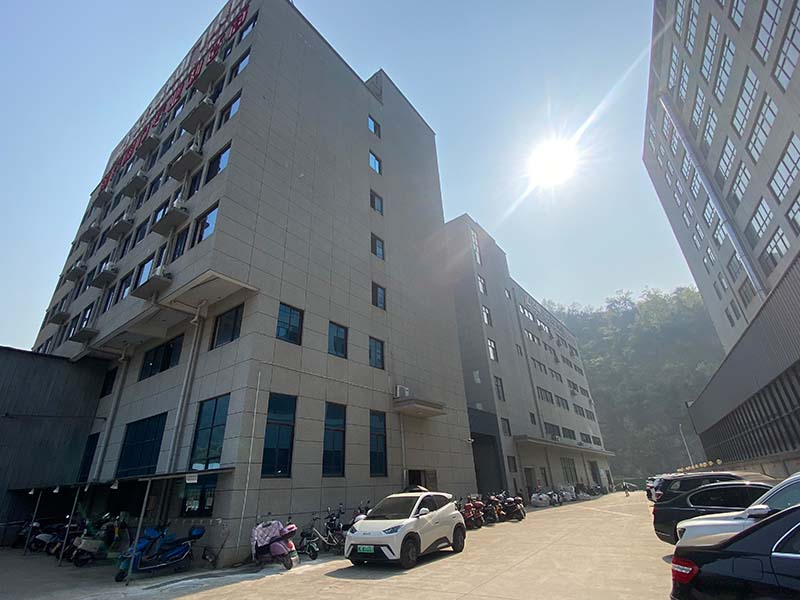

We are proud to introduce RICK VALVES as a leading manufacturer of industrial valves and fittings in China. Established in 2006, our company is equipped with advanced CNC machining centers, CNC lathes, plasma welding machines, chemical element analyzers, mechanical property testers, hardness testers, spectroscopic analyzers, non-destructive defect detectors, ultrasonic thickness gauges, and other specialized equipment. These capabilities ensure top-tier valve manufacturing and testing processes, providing a solid foundation for delivering high-quality products.
At RICK VALVES, we adhere to strict production standards, including API, ANSI, DIN, BS, and JIS, to ensure the highest levels of quality and reliability.

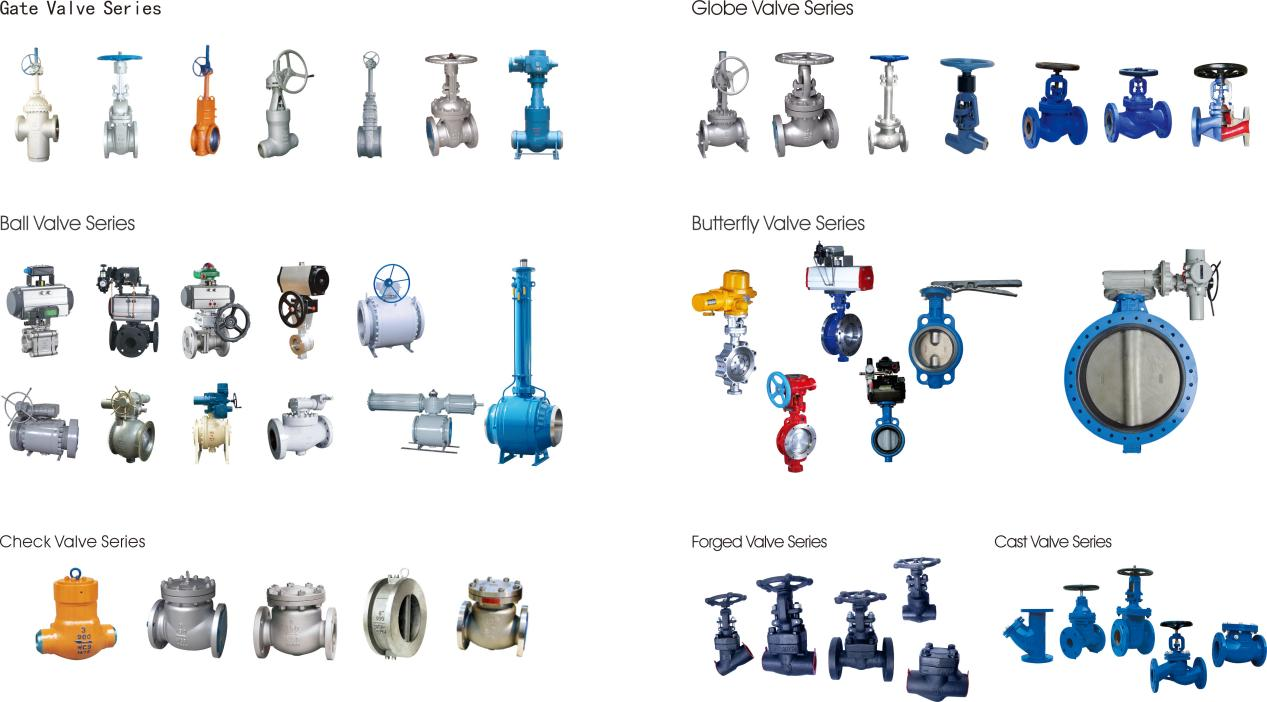

Our core product offerings include a wide range of valves such as ball valves, gate valves, check valves, globe valves, bellow-sealed globe valves, and bellow-sealed gate valves, among others.
The materials used in our valves include WCB, A105, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, C5, C12, LCB, and more.
We offer nominal diameters ranging from DN15mm to DN900mm or from 1/2" to 36", ensuring versatility to meet a broad range of customer needs.
