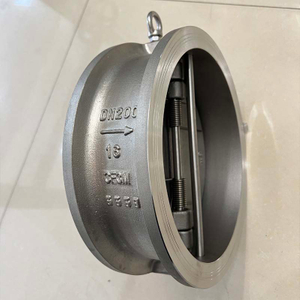

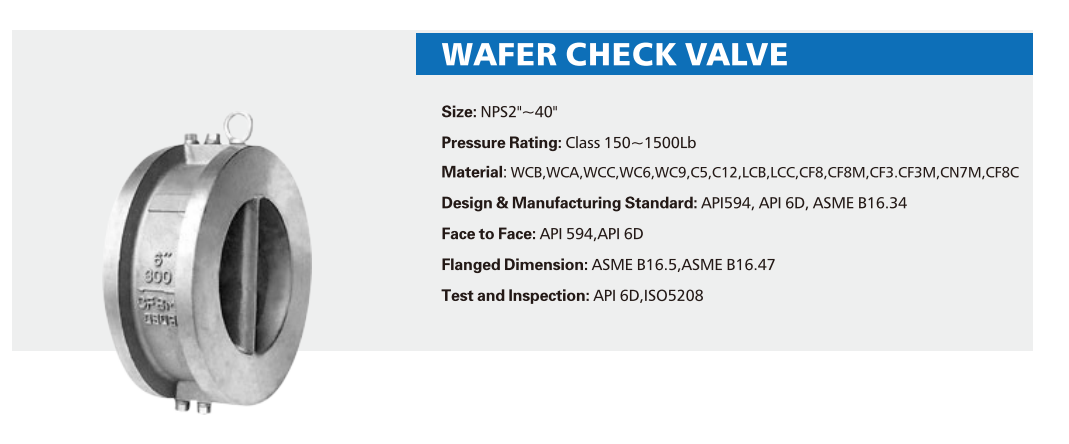

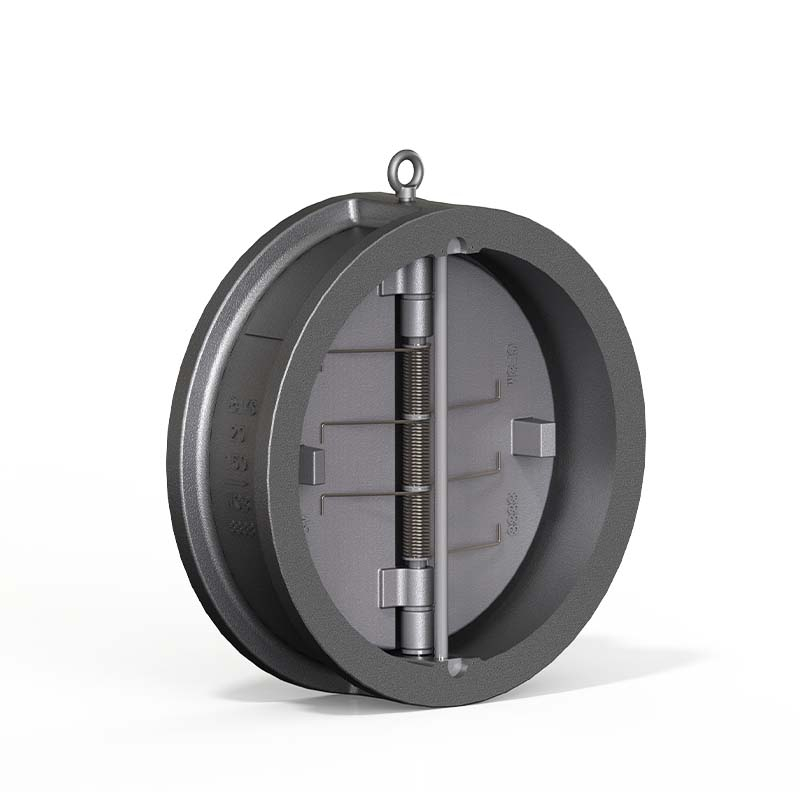

WAFER CHECK VALVE：
| Parameter | Specification |
|---|---|
| Size | NPS 2" ~ 40” |
| Pressure Rating | Class 150 ~ 1500Lb |
| Material | WCB, WCA, WCC, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C |
| Design & Manufacturing Standard | API594, API 6D, ASME B16.34 |
| Face to Face | API594, API 6D |
| Flanged Dimension | ASME B16.5, ASME B16.47 |
| Test and Inspection | API6D, ISO5208 |
In addition to the WAFER CHECK VALVE, we also offer the Pressure Seal Swing Check Valve. This valve is specifically designed for high-pressure applications where a reliable sealing mechanism is crucial. It provides excellent performance in regulating fluid flow while preventing backflow, even under extreme conditions. Ideal for industries that require stringent pressure and temperature controls, this valve offers a robust solution for demanding operational environments.
| Parameter | Specification |
|---|---|
| Size | NPS 2" ~ 36" |
| Pressure Rating | Class 900 ~ 2500Lb |
| Material | WCB, WCA, WCC, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C |
| Design & Manufacturing Standard | BS1868, ASME B16.34, API 6D |
| Face to Face | ASME B16.10, API 6D, EN 588 (DIN 3202) |
| Flanged Dimension | ASME B16.15, ASME B16.47, (DIN 2501) |
| Butt Weld Dimensions | ASME B16.25 |
| Pressure-Temperature | ASME B16.34 |
| Test and Inspection | BS 12266, API1598 |

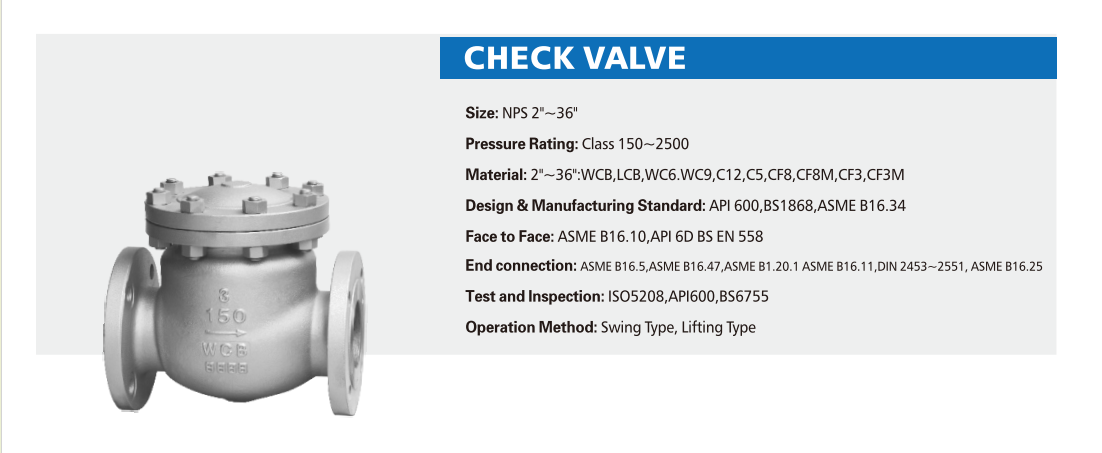

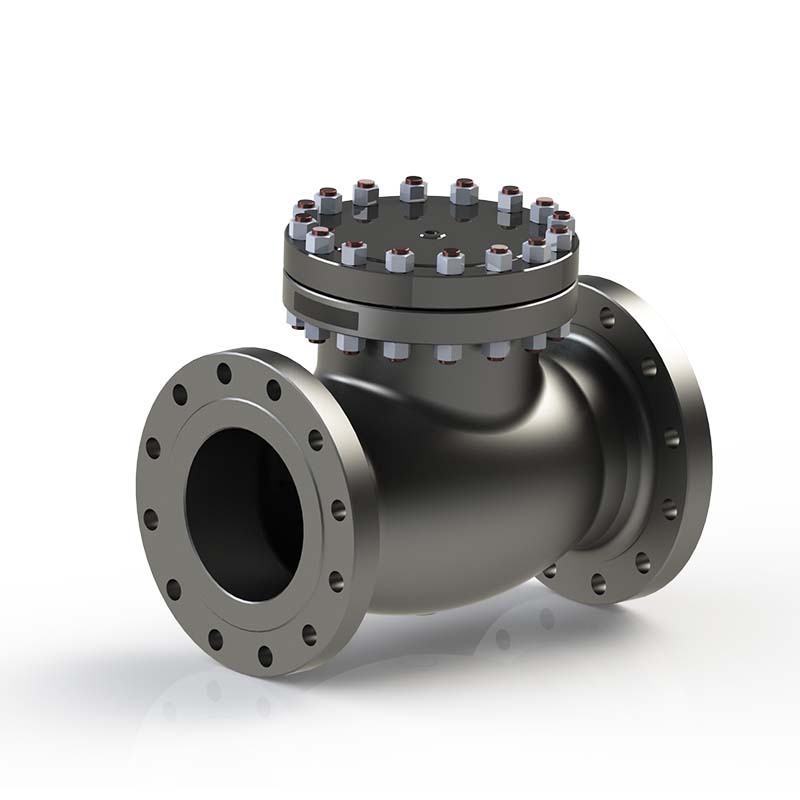

For systems that require versatile and reliable flow control, our Check Valve is another excellent option. This valve ensures that fluid flows in only one direction, preventing any backflow that could damage your equipment. With a wide range of pressure ratings and materials available, this valve is suitable for a variety of industrial applications, providing optimal reliability in both high and low-pressure systems.
| Parameter | Specification |
|---|---|
| Size | NPS 2" ~ 36" |
| Pressure Rating | Class 150 ~ 2500Lb |
| Material | WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M |
| Design & Manufacturing Standard | API 600, BS1868, ASME B16.34 |
| Face to Face | ASME B16.10, API 6D, BS EN 558 |
| End Connection | ASME B16.5, ASME B16.47, ASME B1.20.1, ASME B16.11, DIN 2453~2551, ASME B16.25 |
| Test and Inspection | ISO5208, API1600, BS6755 |
| Operation Method | Swing Type, Lifting Type |
Expertise: Years of experience in the valve industry.
Quality Assurance: All products are rigorously tested for durability and performance.
Customization: We offer tailored solutions to meet specific client needs.
Global Reach: Trusted by customers worldwide for high-quality valves and systems.
Commitment to Innovation: We continuously improve our products to meet evolving industry demands.
Q1:What materials are used in your Check Valves?
A1:Our Check Valves are made from high-quality stainless steel (304, 316) and brass for superior durability.
Q2:What are the pressure and temperature ratings?
A2:Our valves are rated for pressures up to 10,000 psi and can handle temperatures from -10°C to 150°C.
Q3:Can the valves be customized for different applications?
A3:Yes, we offer custom sizes, materials, and connection types to suit various industrial needs.
